In precision machining centers, high-speed surface mount production lines, or industrial robot clusters, a signal switch delay of just a few milliseconds can cause the entire batch of parts to exceed tolerance; an accidental contact bounce can trigger a chain of expensive production line shutdowns. The slow mechanical action (10-20 milliseconds) and inherent contact bounce of traditional electromagnetic relays have become the hidden bottlenecks restricting modern high-end manufacturing from advancing towards higher precision, better quality, and greater flexibility.

Gordon Electric, deeply rooted in the industrial control field, with a forward-looking vision, has transformed the solid-state relay technology featuring millisecond response and zero-jitter switching into the "digital muscle" driving high-end manufacturing, providing a foundation of deterministic performance for the field of precision control.

Beyond Mechanical Limits: When Speed and Precision Become Productivity

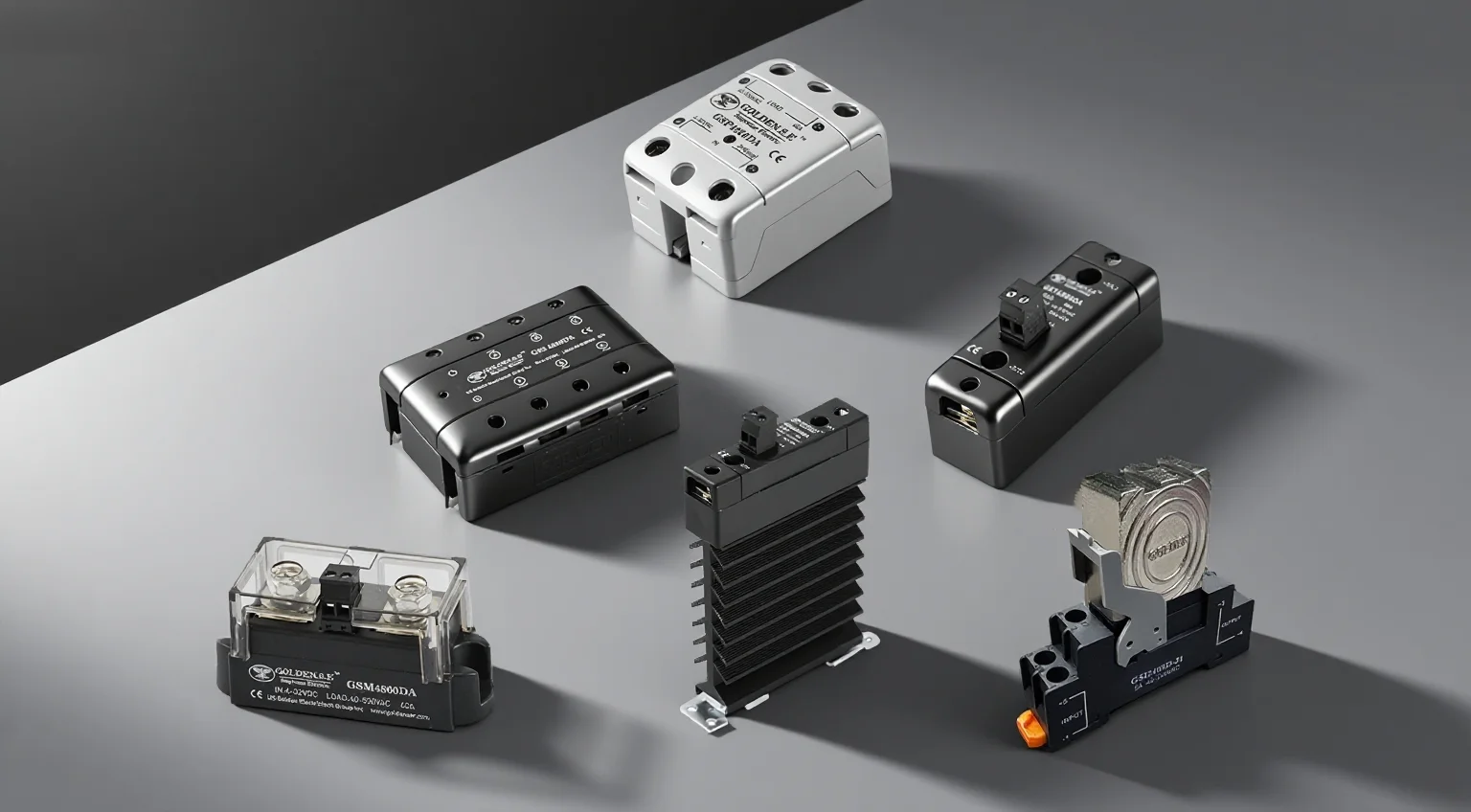

Gordon solid-state relays use the movement of semiconductor carriers for on-off operations, and their speed is incomparable to physical mechanical movements:

Microsecond response: The switching action time is measured in microseconds, which is hundreds to thousands of times faster than traditional relays. This makes it possible to achieve ultra-high-speed and high-frequency pulse control.

Zero-contact bounce: Completely eliminates the physical bounce phenomenon when mechanical contacts close, ensuring a clean and sharp transition of the control signal from "0" to "1", and eliminating error codes and interference.

Synchronous precision: In multi-channel coordinated control systems, nearly perfect synchronous actions can be achieved, ensuring the precise timing of complex process steps.

In semiconductor packaging and testing equipment, the Godelon high-speed solid-state relay is used for precise probe stations and test signal switching. Its stable microsecond-level response ensures absolute synchronization for each test trigger, increasing test efficiency by 18% and significantly reducing the misjudgment rate caused by signal asynchronization.

Supporting Ultimate Load: A Stable Responsibility in Harsh Electrical Environments

High-end manufacturing equipment is often accompanied by complex electrical environments:

High surge current tolerance: Specifically designed for inductive loads such as motors and transformers, it can withstand a momentary surge up to 10 times the rated current, ensuring reliable contact during the initial startup.

Low and stable on-resistance: Ensuring minimal voltage drop and low heat generation when large currents pass through, with negligible power attenuation over long-term operation, providing continuous and stable power output.

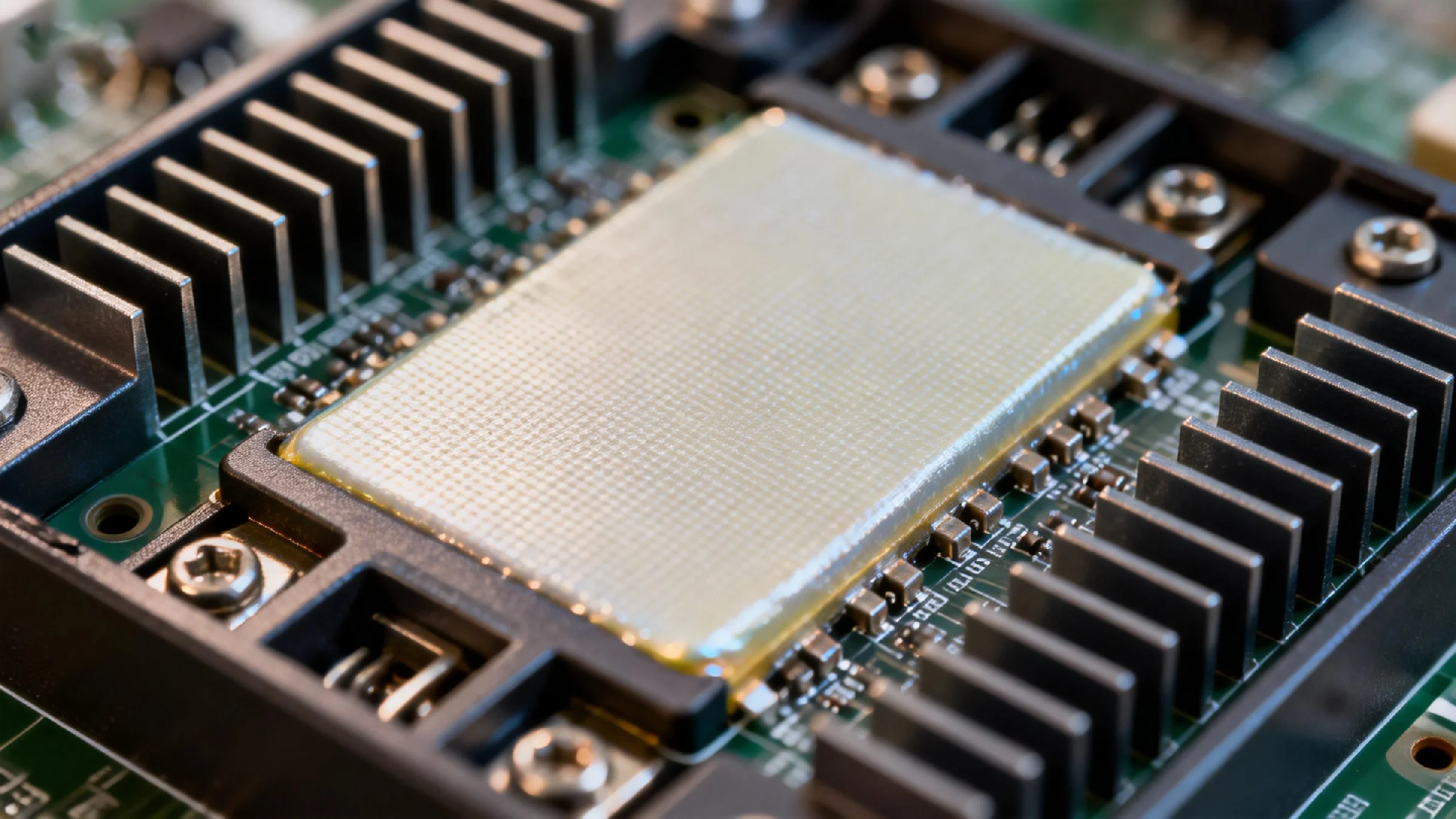

Outstanding heat dissipation design: Utilizing high-performance insulating thermal conductive materials and an optimized heat dissipation structure, it ensures long-term stable operation under dense installation and high load rates.

For a certain laser welding production line of new energy vehicle battery modules, the input control of the welding power supply adopted the high-power solid-state relay of Godel. Under the condition of high-frequency on-off for hundreds of thousands of times and instantaneous large current impact every day, it has been running continuously for two years without any failure, ensuring that the overall equipment effectiveness (OEE) of the production line has always remained at a high level of over 95%.

Seamless integration into intelligent systems: Empowering flexible manufacturing and digitalization

Gordun solid-state relays are the ideal execution terminals in the intelligent factory network:

Wide compatibility: The input control voltage range is wide, allowing direct interface with various PLCs, motion controllers, and industrial PCs without the need for intermediate conversion.

Status information is traceable: Smart models provide real-time data feedback such as operating status, load current, and temperature, providing a basis for predictive maintenance and process optimization.

Support for bus integration: Offers modular products that support mainstream industrial bus protocols such as PROFINET and EtherCAT, facilitating integration into the plant-wide digital system.

In a flexible and intelligent factory practicing Industry 4.0, the high-speed bus type solid state relays are integrated into the distributed IO system of each workstation. The production management system can directly issue control instructions according to order changes, dynamically adjust the working mode and parameters of the equipment, and achieve efficient and rapid switching for small-batch and multi-variety production.

The extensive application territory

Gordon solid state relays have become indispensable core components in the high-end manufacturing field:

Precision machining: tool selection in the tool magazine of CNC machine tools, spindle cooling, fixture control.

Electronic manufacturing: Precision signal and power control for SMT equipment, AOI inspection machines, and burn-in testers.

Automation and Robotics: Robot body joint drive control, conveyor belt servo start and stop, vision system lighting control.

Test and Measurement: Signal Routing and Load Switching in Automated Test Equipment (ATE)

Special processes: Power sequence control for equipment such as laser cutting, ultrasonic welding, and high-frequency quenching.

In the era of moving towards intelligent manufacturing, control accuracy determines product quality, and response speed defines production efficiency. Godel Electric, with solid-state relays at its core, injects millisecond-level control certainty into the industrial pulse, helping China's high-end manufacturing break through limits and win the future with intelligence. Choosing Godel is choosing cutting-edge control technology to forge your unparalleled manufacturing competitiveness.
